DF40F Series

Small in Size, Big on Performance

Compact Floating Board-to-Board Connector Solution

  • 0.4mm Pitch, 3.68mm Width, Stacking Height 3.5 to 6.0mm
  • Absorption of Misalignment
    X and Y Directions : Floating Range ±0.3mm
    Z Direction : Effective Mating Length +0.25/0mm
  • Wide Variety of Stacking Heights when mating with DF40T
  • 125ºC Heat Resistance for Automotive Specifications
  • Supports High Speed Transmission PCI-ex Gen.4(16Gbps) and MIPI D-PHY Ver.1.1(1.5Gbps)
DF40F Series: Small in Size, Big on Performance - Hirose's Compact Floating Board-to-Board Connector Solution



WATCH NOW:

Cutting Edge Capabilities in Action

Step into Hirose's DF40F Series, where innovation meets compact design. Ideal for modern devices that demand efficient space utilization without compromising on performance, the DF40F is engineered for resilience. Its groundbreaking floating design effortlessly absorbs misalignments, ensuring reliable connections. With its space-saving footprint, heat resistance up to 125ºC, and capability to support rapid data transfers, this connector is the future of seamless integration.




OUR NEWEST SERIES


DF40F SERIES

Discover the DF40F Connector by Hirose: 0.4mm Pitch, 3.68mm Width, Stacking Height 3.5 to 6.0mm

Hirose has expanded its DF40 board-to-board floating connector series to support PCI-ex Gen.4(16Gbps) and MIPI D-PHY Ver.1.1(1.5Gbps). The DF40F Series provides high-density mounting, significant space-savings, and high-temperature resistance to 125 degrees for automotive applications.

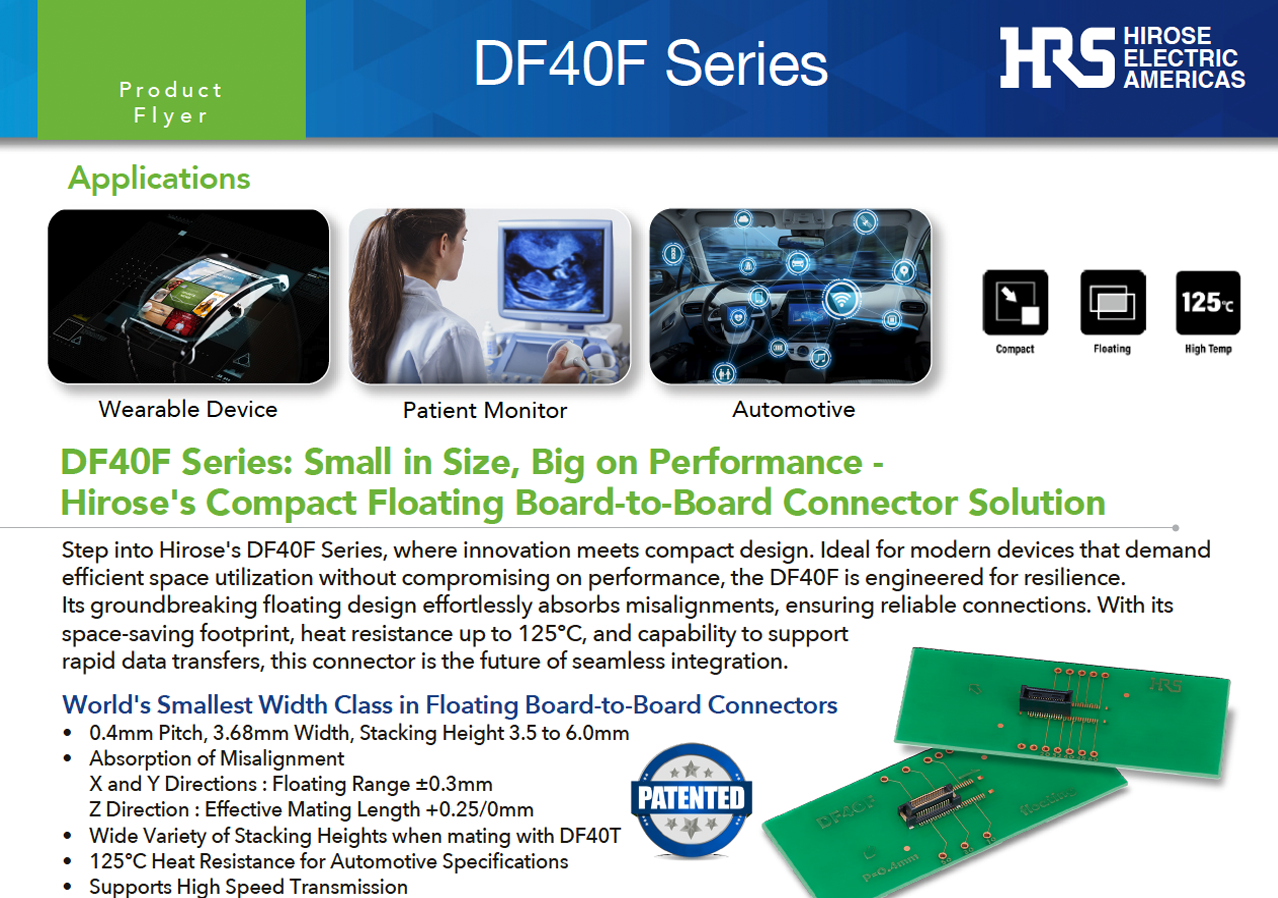

DF40F Connector NPI
