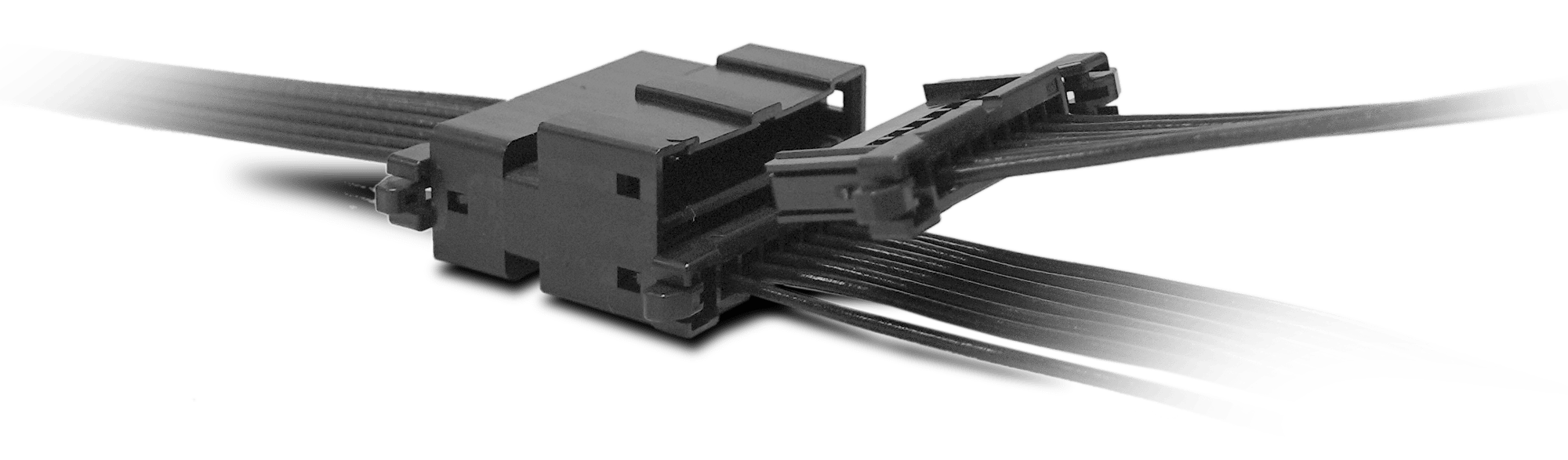

DF51B Branch Series Connector
2mm Pitch, Positive Lock, Crimp Type Connector
- Wide varieties satisfy various customer requirements, Straight/Right angle/In-line Connection/Branch, Single/Dual row, Gold/Tin Plating, etc.
- Side lock design enables user-friendly operation and reliable connection
- High contact lance strength prevents contact pulling loose while wrenching the cables
- Applicable Cable: 22-30 AWG
- UL/C-UL certified
WATCH NOW:
CUTTING-EDGE ACTION CAPABILITIES IN ACTION
Explore the features of Hirose's DF51B Series in this video overview. Discover the DF51B Connector designed to withstand strain, it's adaptable for varied cable types and proudly UL/C-UL certified. Learn why it will soon be everyone's top choice for modern device design. Hirose: Leading the way in next-gen connectivity.
OUR NEWEST SERIES

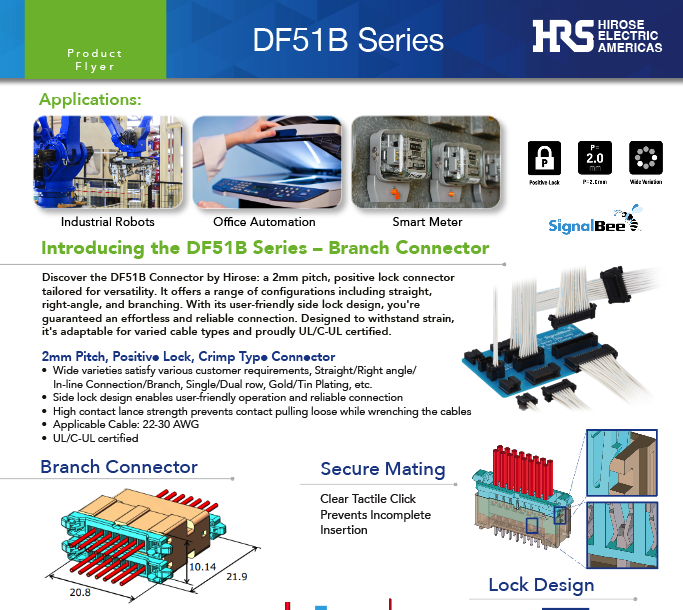

Discover the DF51B Connector by Hirose: a 2mm pitch, positive lock connector tailored for versatility. It offers a range of configurations including straight, right-angle, and branching. With its user-friendly side lock design, you're guaranteed an effortless and reliable connection. Designed to withstand strain, it's adaptable for varied cable types and proudly UL/C-UL certified.
