What connectors are used in chiller systems? +
Chiller systems use a combination of power, wire-to-board, wire-to-wire, board-to-board, FPC/FFC, and communication connectors. These connections support compressors, pumps, fans, sensors, control boards, HMI equipment, power distribution, and communication interfaces in data center and commercial HVAC chillers.
Where are connectors used inside a chiller? +
Connectors are used throughout chiller equipment, including control and starter boxes, compressor motors, pumps, fans, HMI and displays, sensors, power connections, and communication interfaces. Depending on the connection point, connectors carry power, control signals, sensor data, or network communications between chiller components.
Why are sealed connectors important in chiller systems? +
Chiller systems can expose electrical connections to moisture, condensation, dust, dirt, and other environmental contaminants. Sealed connectors can help protect power, signal, sensor, and communication connections from these conditions while supporting reliable electrical performance in demanding chiller environments.
What should engineers consider when selecting connectors for chiller systems? +
Connector selection for chiller systems depends on the electrical, mechanical, and environmental requirements of each connection point. Engineers may need to consider current and voltage, available space, sealing, temperature, vibration, secure locking, cable routing, installation, and serviceability when specifying connectors for power, controls, sensors, and communication interfaces.
Are connector requirements different for data center and commercial HVAC chillers? +
Data center and commercial HVAC chillers share many connector requirements, including reliable power, control, sensor, HMI, and communication connections. Data center applications may place greater emphasis on uptime, equipment density, vibration resistance, compact routing, and serviceability, while commercial HVAC designs may prioritize high-power connections, environmental protection, secure locking, cable routing, and installation requirements. Connector selection ultimately depends on the chiller architecture and operating environment.
How can connector selection simplify chiller wiring and installation? +
Connector selection can help simplify chiller wiring by supporting compact routing, secure mating, clear polarization, modular connections, and branch connections for sensors and internal power distribution. Branch connector designs can reduce cable usage, organize wiring, and simplify installation or service by allowing multiple connections to be distributed from a common point.
What connectors are used for chiller controls, sensors, and communication? +
Chiller controls and sensors may use wire-to-board, board-to-board, FPC/FFC, and branch connectors for HMI, display, temperature, pressure, flow, and other sensing connections. Communication and service interfaces may use Ethernet, USB Type-C, and other industrial communication connectors depending on the chiller architecture and system requirements.

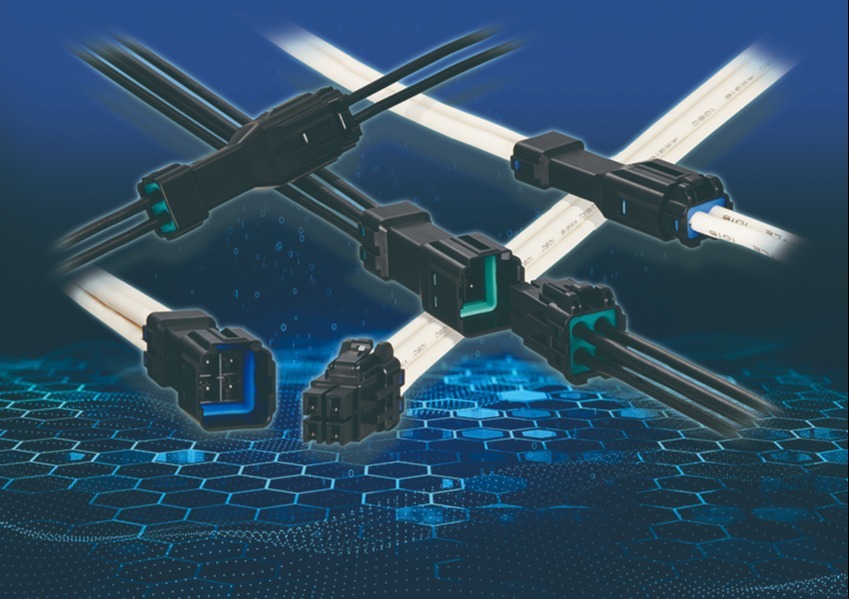

Manage heat from high-density computing _cmyk.jpeg?width=849&height=599&name=DF63W(shadow)_cmyk.jpeg "Hirose Electric Cooling Connector Solutions DF63W Sealed Waterproof Image")
